ARF-S G2
Footprint: 4.52" x 5.12"
Height: 15.35"
Width: 9.45"
Roll paper width: 3.93"
Use to Aquarium 300L (80Gal)
Flow Rate up to 500GPH
Pipe Connection 1"
The ARF-S G2 removes the need for filter socks. Water is fed into the internal chamber via the aquarium systems drain, and through the filter roll. When the water level rises in the chamber due to filter clogging the water level switch triggers the motor to wind on the filter roll to a new fresh piece. The water level will then drop repeating the process
ARF-M G2
Footprint: 6.30" x 6.50"
Height: 17.13"
Width: 11.42"
Roll paper width: 5.90"
Use to Aquarium 500L (132Gal)
Flow Rate up to 800GPH
Pipe Connection 1"
The ARF-M G2 removes the need for filter socks. Water is fed into the internal chamber via the aquarium systems drain, and through the filter roll. When the water level rises in the chamber due to filter clogging the water level switch triggers the motor to wind on the filter roll to a new fresh piece. The water level will then drop repeating the process

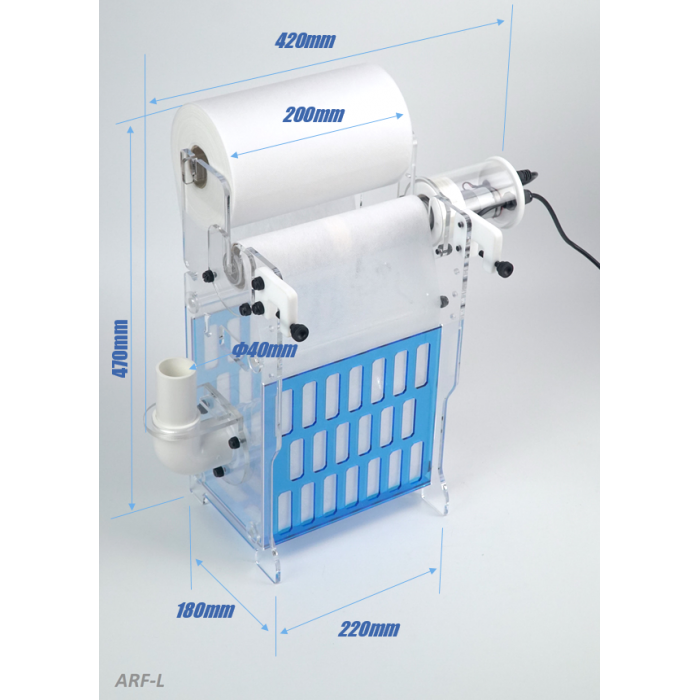

ARF-L G2
Footprint: 8.66" x 7.10"
Height: 17.13"
Width: 16.53"
Roll paper width: 7.87"
Use to Aquarium 1000L ( 264GAL )
Flow Rate up to 1200GPH
Pipe Connection 1.25"
The ARF-L G2 removes the need for filter socks. Water is fed into the internal chamber via the aquarium systems drain, and through the filter roll. When the water level rises in the chamber due to filter clogging the water level switch triggers the motor to wind on the filter roll to a new fresh piece. The water level will then drop repeating the process
